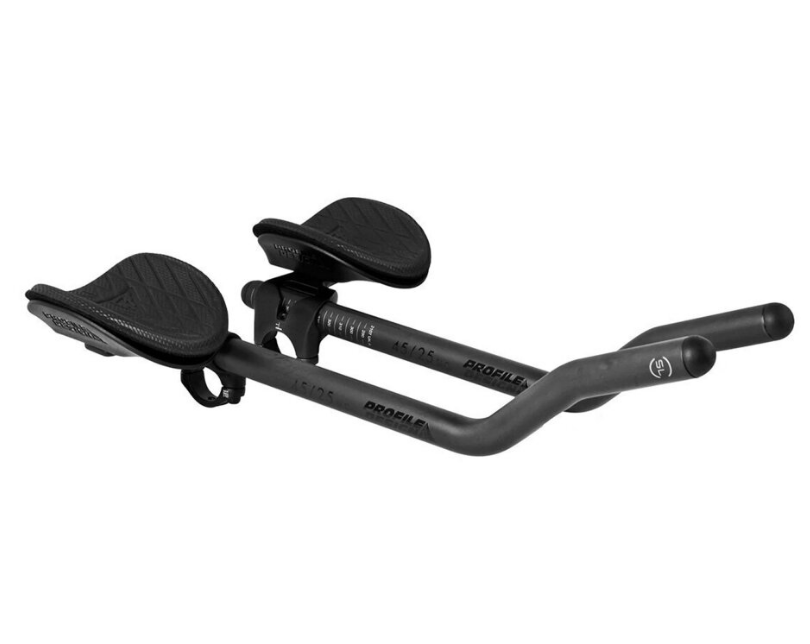

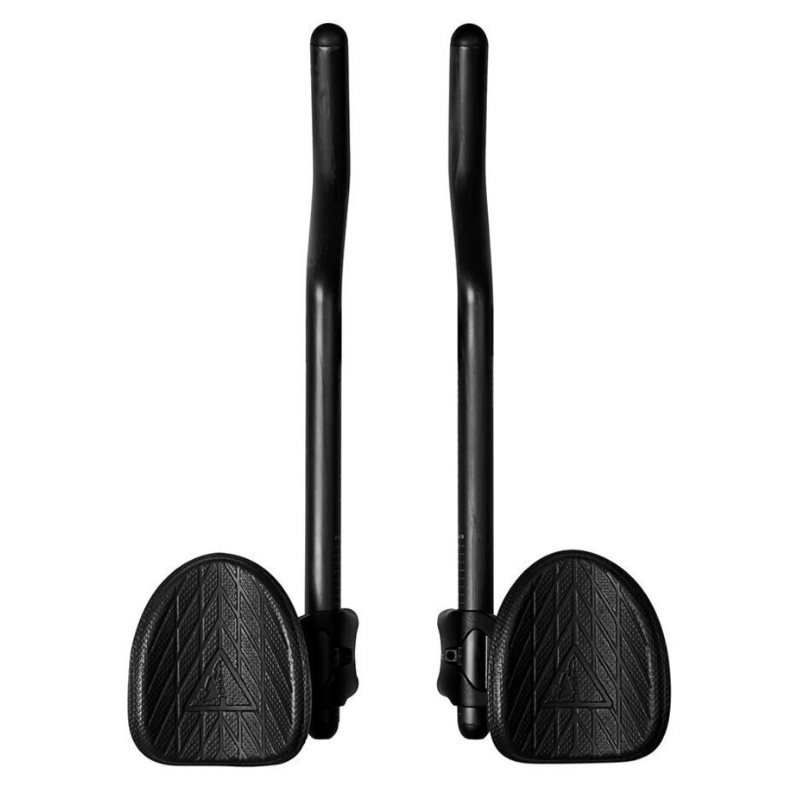

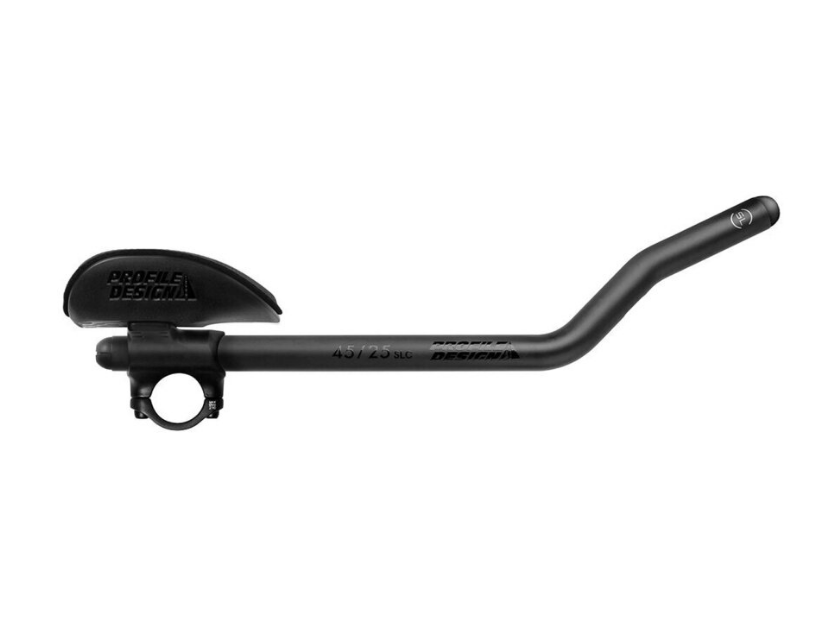

Supersonic Ergo+ 4525 SLC Aerobar

The Supersonic/Ergo+/SLC (Super Light Carbon) series aerobars offer industry leading ergonomics, adjustability and low weight – maximizing your comfort and speed. The Supersonic/Ergo+ platform is designed to give riders the freedom to find their best possible position with a huge range of independent adjustments.

The bar is paired with the Ergo+ armrest that takes the popular Ergo shape and adds 40mm of length as well as a new textured cushion.

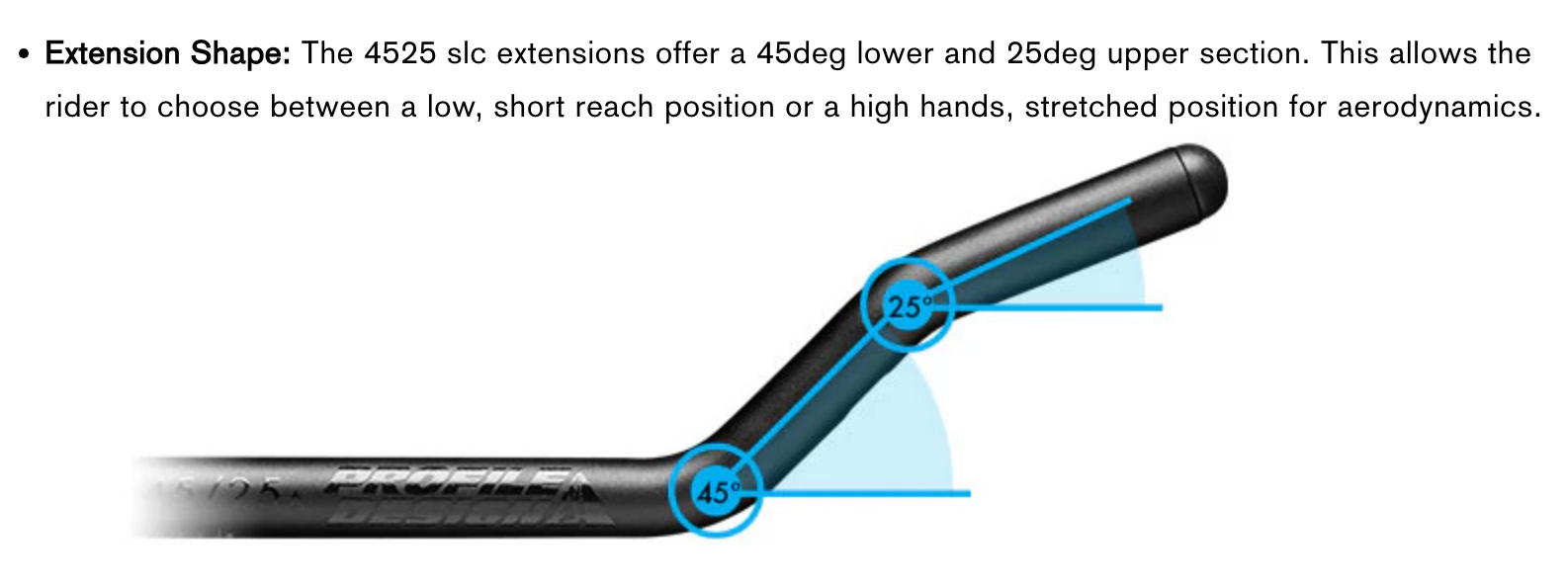

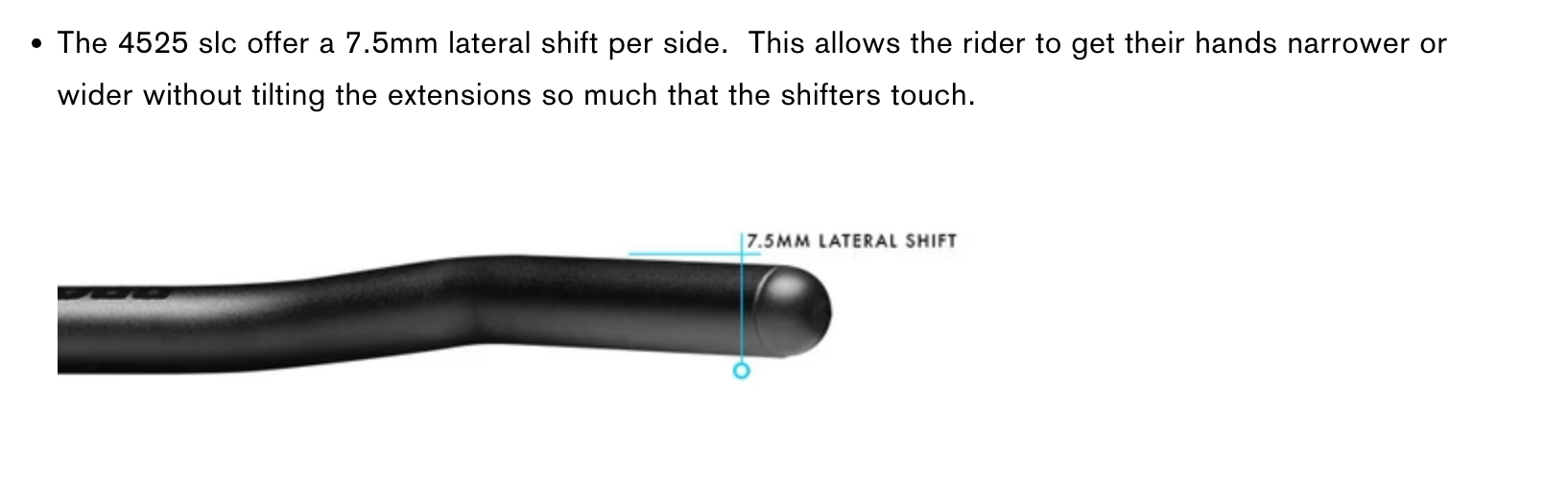

The 4525 SLC extensions offer a 45 degree lower and 25 degree upper section. This allows the rider to choose between a low, short reach position or a high hands, stretched position for aerodynamics. The 4525 SLC offers a 7.5mm lateral shift per side. They are 400mm long and can be cut to size to suit nearly every rider. They are drilled for rear-exit cable routing.

Specifications

• Colour: Black
• Bracket: Supersonic
• Armrest: Ergo+ / 10mm Pads
• Armrest Width: 124mm to 290mm in 18.5mm steps (with extensions at 100mm)
• Armrest Stack: 58.5mm (no riser kit) to 138.5mm in 5mm increments (with riser kit)
• Extension Length: 400mm
• Extension Angle: 45° lower / 25° upper
• Clamp Diameter: 31.8mm (26.0 w/Shims)
• Weight: 627g

The Supersonic/Ergo+ platform is designed to give riders the freedom to find their best possible position with a huge range of independence adjustments.

Fit Data

• Armrest Offset: -85mm to -17.5mm in 15mm steps
• Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
• Armrest Stack: 58.5mm (no riser kit) to 138.5mm in 5mm increments (With aftermarket Riser Kit)

There are 80 distinct position options achievable just by moving the armrests.  Combine that with risers and this bar offers 1440 possible configurations.  As a clip on bar it is also possible to adjust the extension width and tilt easily.
