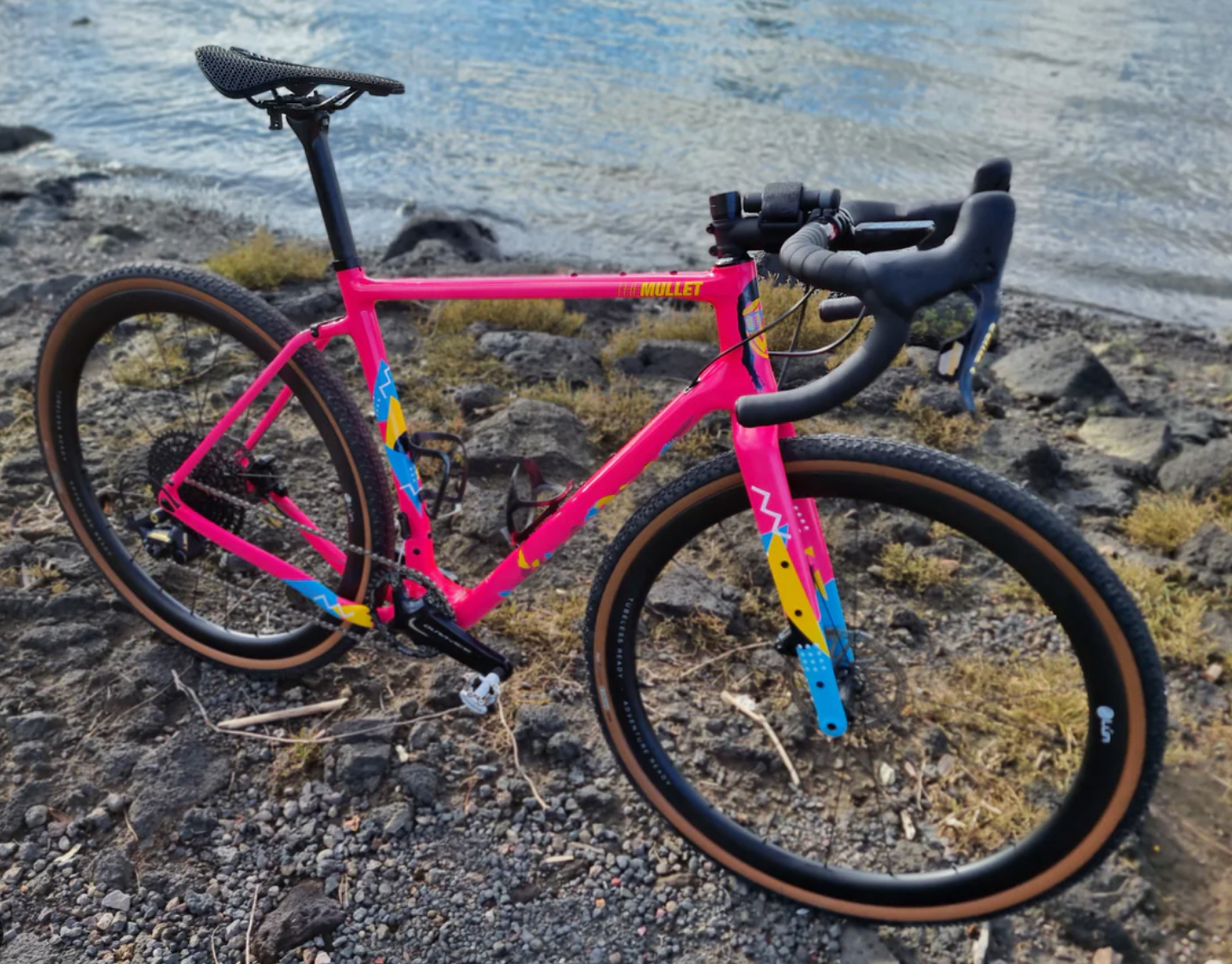

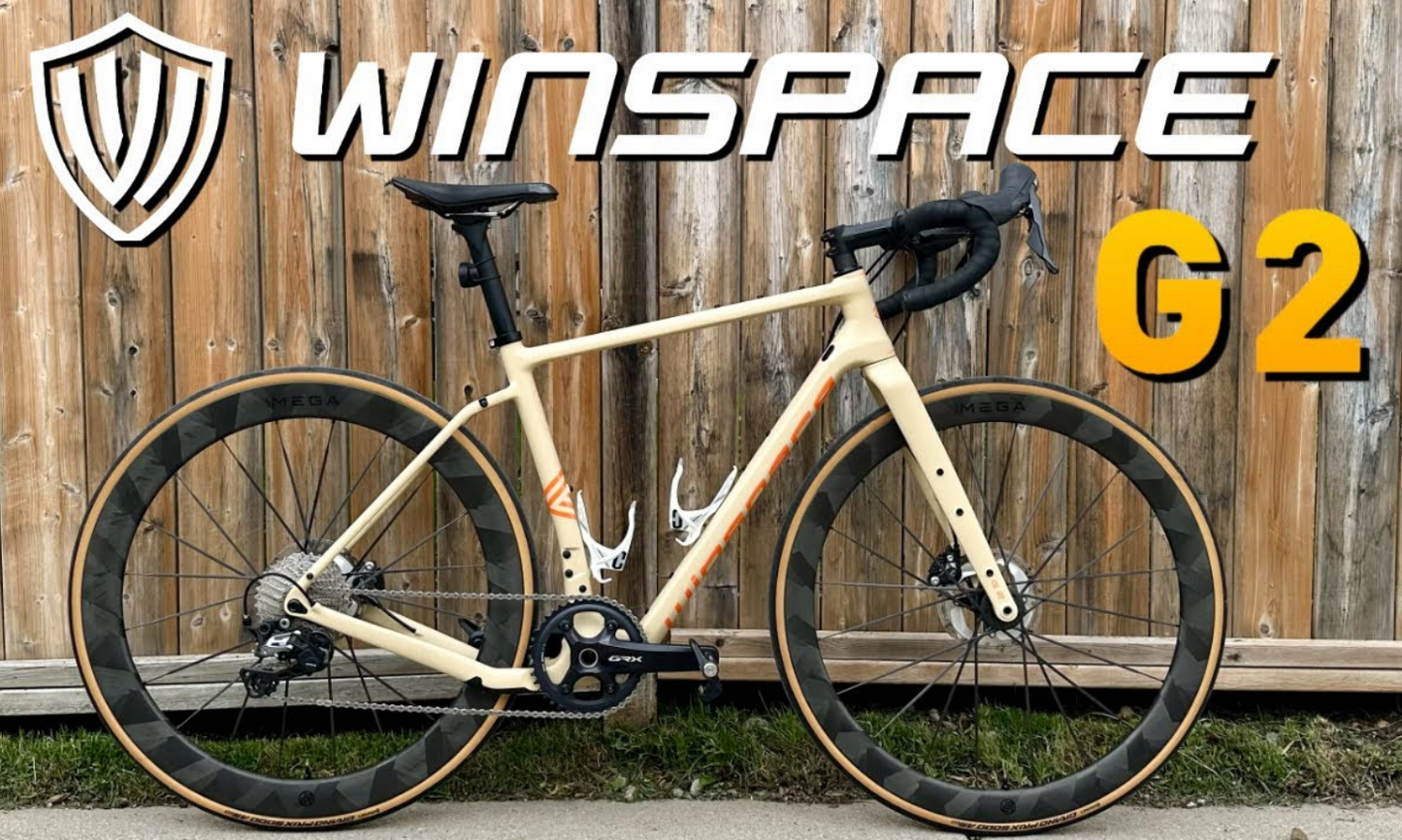

G2 Gravel Frameset

Ready to take you on any adventure; the G2 features progressive, confidence-inspiring geometry, and clearance for up to 50mm tires. So whether you’re an experienced gravel racer or a roadie looking to get off the tarmac for the first time, the G2 is just what you need.

With clearance for big, knobbly tires and chainstays specially-shaped for mud clearing, the G2 was made for mess. Sure, it feels just as at home rolling along nice, smooth roads, but you always get the feeling it just wants to be dirty.

With a 70 degree headtube angle and a 68mm trail figure, the G2 is slack enough to feel stable going down the sketchiest of descents, but nimble enough to maneuver around roots and rocks on even the gnarliest of trails.

For the G2 we went back to basics with a BSA threaded bottom bracket. The thinking behind this was two-fold. First; gravel bikes get a fair share of abuse, and will probably need more regular maintenance than your regular road bike. A BSA bottom bracket makes this a whole lot easier for the home mechanic. Secondly, we know people will be taking their G2s on some pretty epic off-the-grid adventures. It will be a lot easier to source and replace a BSA bottom bracket in some back-alley bike shop than any press-fit solution, should the need arise..

When drawing up the G2, we put function before form. A large main inner triangle with flat surfaces maximizes space for bike bags. A wide range of mounting points allow for mounting loads of water bottles, a top-tube feed bag, panniers, or even fenders.

Model name: G2 Gravel
Size: XS, S, M, L
Headtube: 1 1/8”-1 1/2”;
BB: BSA Threaded
Seat post: 31.6mm (included)
Brake: Flat Mount Disc Brake (140/160mm)
Front Derailleur Hanger: Brazed on
Derailleur Routing: Mechanical/Di2/ETap/Campy EPS
Tire clearance: S, M, L max recommended clearance 700x50C / 650B*2.0″
Note: Max tire clearance on XS size frame: 700x35C / 650B*2.0″
Wheel Axle: 12mm through axle F100mm R142mm
Weight: frame 1080+/-30g for M size
Componets: Frame, fork, seat post, headset, Di2 cable stopper, spare derailleur hanger
Warranty: Limited 3yr warranty on the frameset
