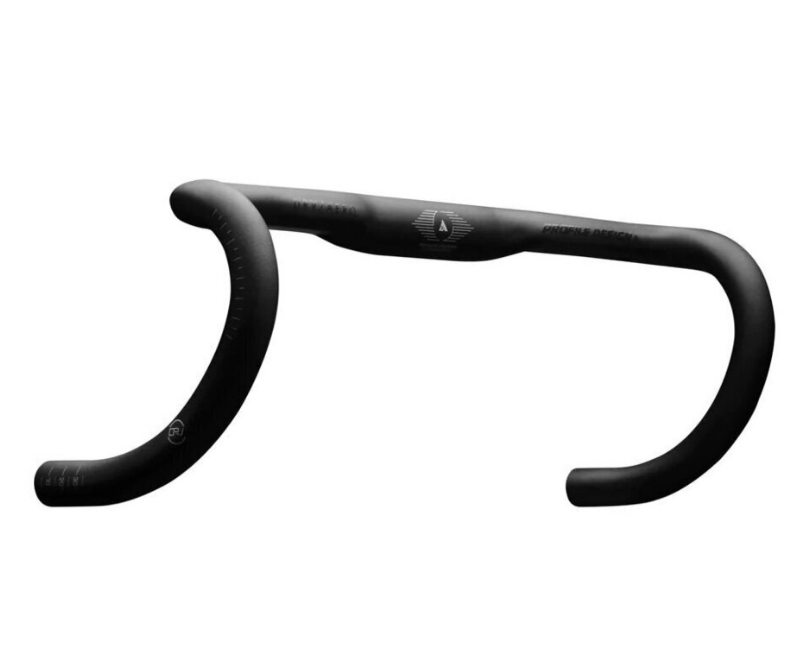

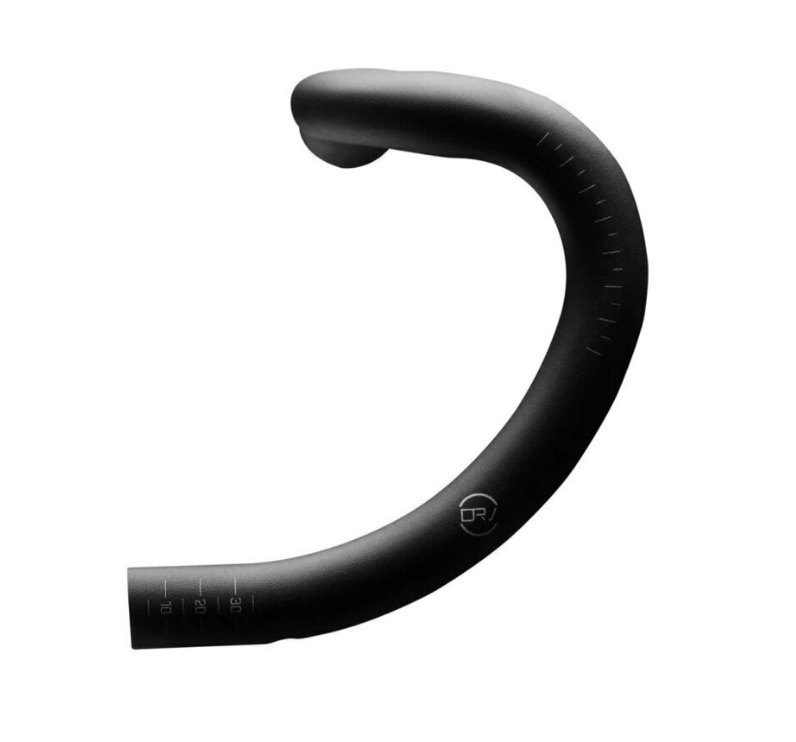

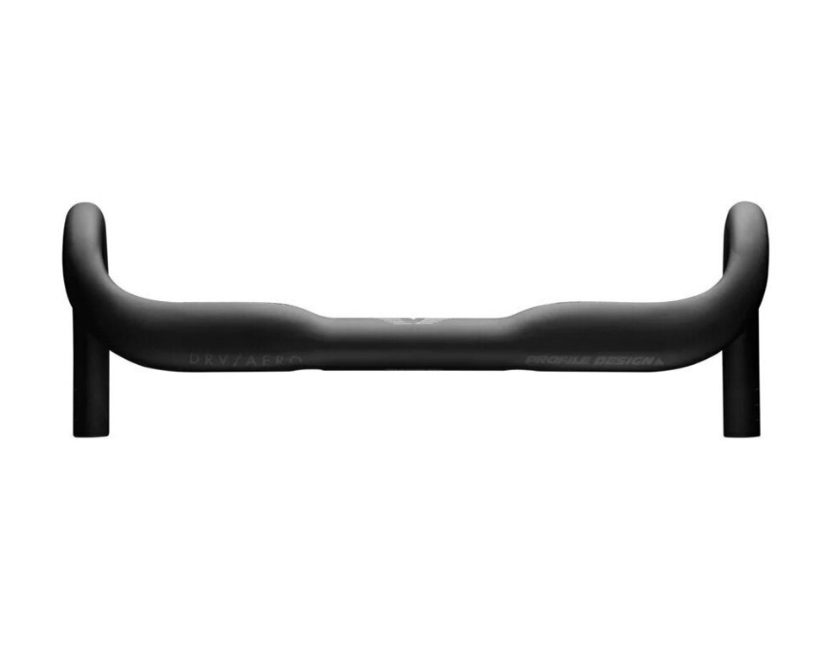

DRV/AEROa Drop Bar

The DRV/AEROa is a high-performance aluminum aero drop bar featuring a truncated airfoil for aerodynamics, comfort and stiffness. The curve has been optimized for modern road levers. The innovative fit and ergonomics of the DRV system include a 7° ramp angle and a 4° flare in the drops, allowing a natural wrist angle for enhanced comfort and control.

The DRiVe metric by Profile Design pinpoints the precise position in the drops where riders instinctively place their hands. The metric is incorporated into a new series of progressively sized handlebars designed around a cyclist's most powerful hand positions.

DRiVe drop bars allow for many of the ideal ride positions most critical to comfort, power, and control.

Specifications

• Material: 6061-T6 AL
• Finish: Matte Black
• Size: 40, 42, 44cm (center to center)
• Reach: 70, 75, 80mm
• Clamp Diameter: 31.8mm
• Clamp Width: 100mm
• Drop: 122mm, 136mm, 148mm
• Drop Outsweep: 4°
• Drive: 105mm, 120mm, 135mm
• Internal Cable Routing: Yes (Mechanical / Di2)
• Max Brake Lever Torque: 10Nm
• Max Torque Clamping to Bar: 6Nm
• Weight: Approx. 315g
• Clip Compatible: Yes
