Rocky Mountain

2024

Altitude Alloy 30

Altitude Alloy 30

$4,799.00 CAD
$4,799.00 CAD
Sale Sold out
Shipping calculated at checkout.
Wheel Size
Size
Colour

Pick up could take up to 10 days

Not all our bikes are stored at our retail location so in store pick up for bikes could take up to 10 days.

Please contact the store for more information on estimated pick up ETA.

Don't see what you want?

Other colour and size options might be available for speical order.

Contact us for more information.

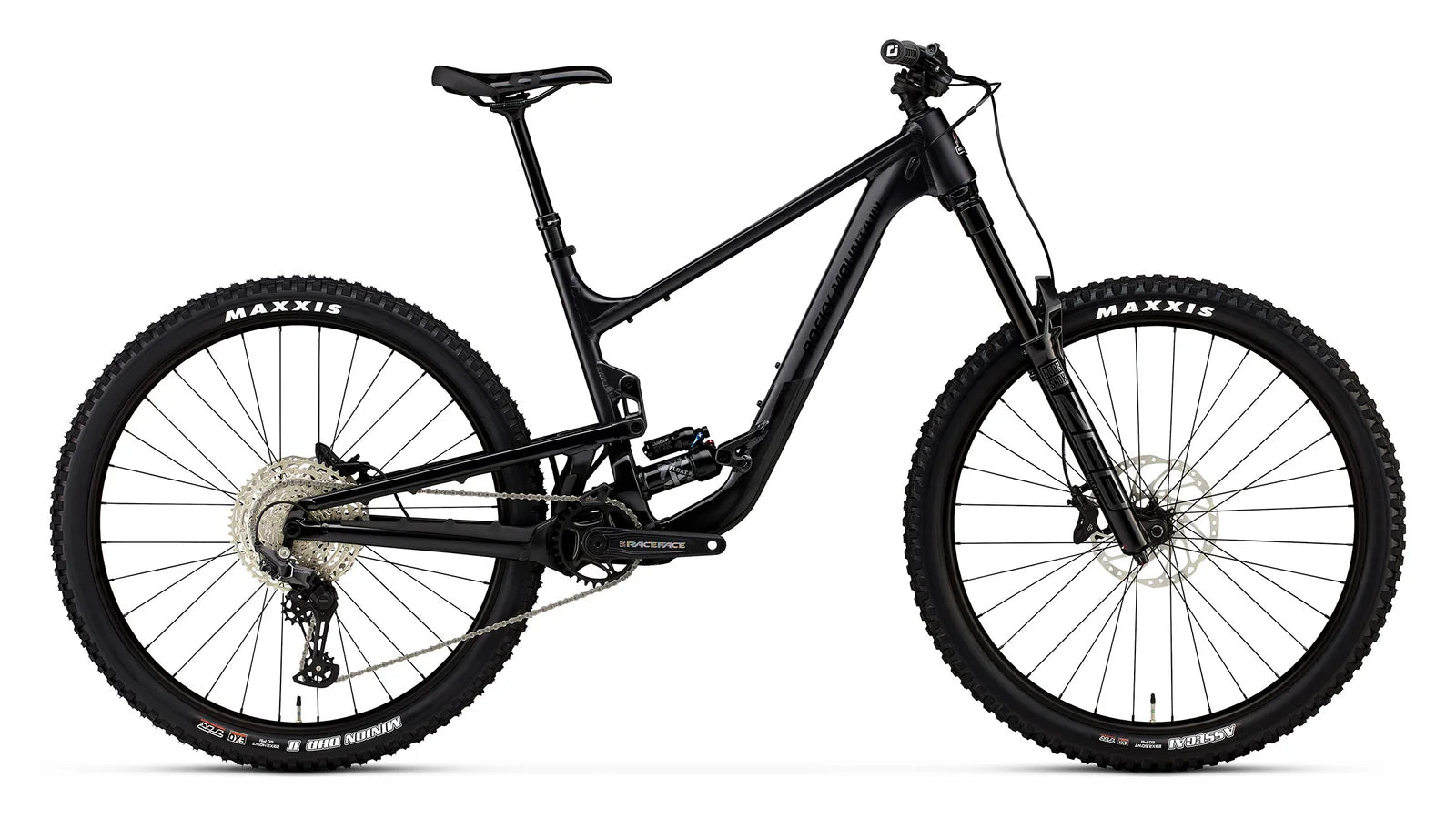

From commanding the clock to holding your own on weekend rides. The Altitude Alloy is purpose-built to go fast and demolish steep trails. Its total enduro capabilities can help you secure that “top step” and tackle demanding group rides with confidence. The Altitude Alloy features internal routing, size-specific tune, and the refined RIDE-4™ adjustment system. With so much capability in your corner, it’s time to push limits, climb faster, and charge.

The all-new design makes the Altitude even faster than before. With increased stiffness and a lower centre of gravity, overall ride performance is leveled up.  Its finely tuned rate curve and concentrated suspension mass let it handle bumps effectively, keeping the rear wheel glued to the ground under power.

View full details

Details

Specifications

Frame - FORM™ Alloy | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel. FORM™ Alloy Rear Triangle
Fork - RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset
Front Travel - 170
Shock - Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
Rear Travel - 160
Headset - FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem - Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Handlebar - Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips - ODI Elite Pro Lock On
Brakes - Shimano MT6120 4 Piston | Metal Pads
Shifters - Shimano Deore 12spd
Rear Derailleur - Shimano Deore 12spd
Cranks & Chainring - Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: SM = 165mm | MD - XL = 170mm
Bottom Bracket - Shimano Threaded BBMT501-B
Cassette - Shimano Deore 10-51T 12spd
Chain - Shimano M6100
Front Hub - Shimano TC500 | 15x110m
Rear Hub - Shimano TC500 Boost 148mm
Spokes - 2.0 Stainless
Rims - WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl
Tires - F: Maxxis Minion Assegai 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready //
Seatpost - X Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
Saddle - WTB Volt 142

We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification. Specifications may not be as shown in photo.

Shipping

This bike is not eligible for shipping

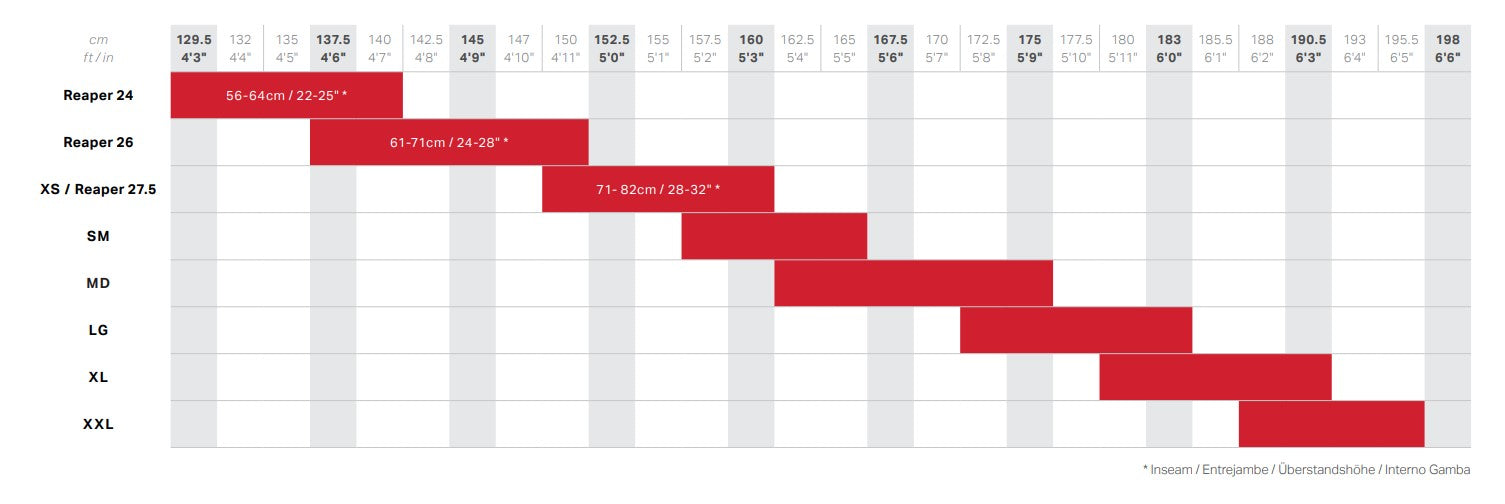

Size Chart

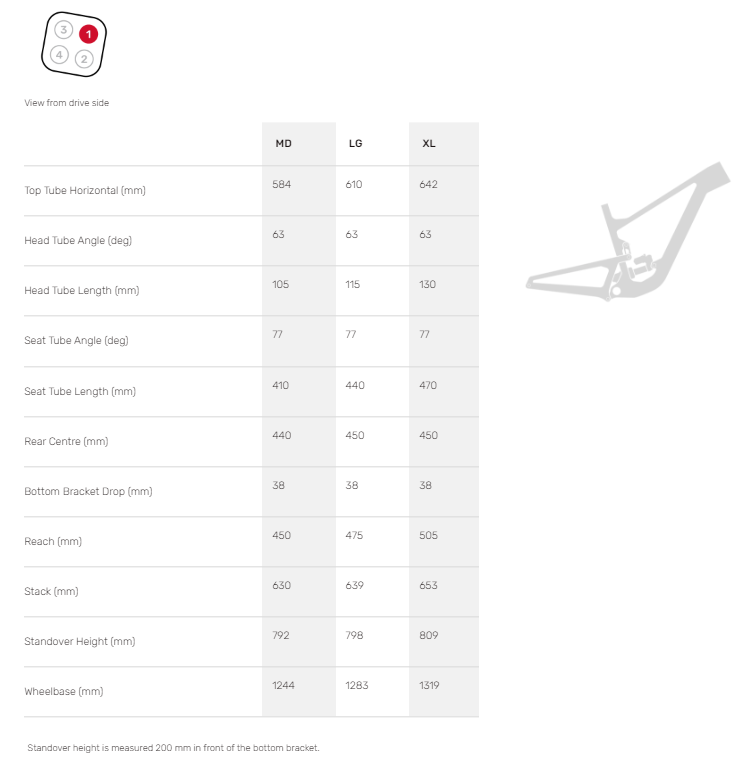

Geometry Chart
