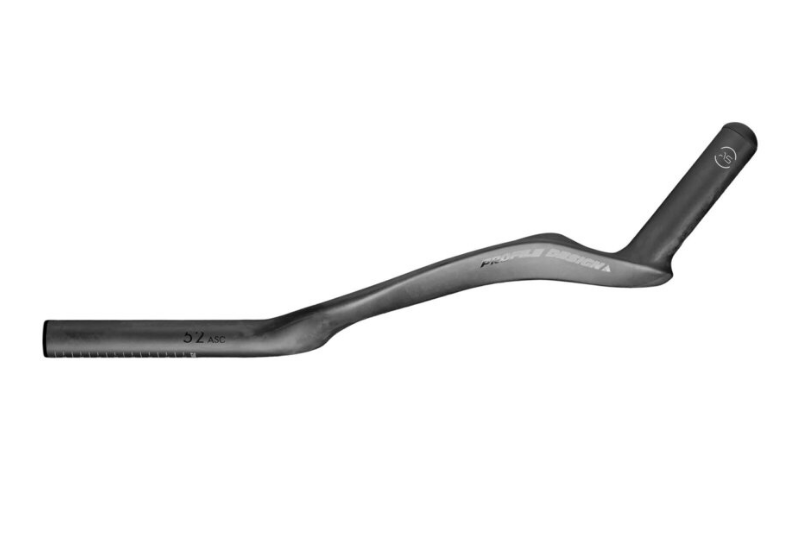

52 ASC Carbon Extensions

The 52 ASC (Aero Shaped Carbon) extensions take advantage of the design scope offered by carbon fiber to offer a highly optimized shape for improved comfort and control. The shape was optimized to minimize drag without sacrificing strength.

The fit by the wrist area is designed to smooth airflow over the arm and to increase contact area which will provide some extra comfort and to give you more control over your bike.

The 52 ASC is intended to optimize the aerodynamics of your existing bars and pairs well with Profile Design Plus Series armrests.

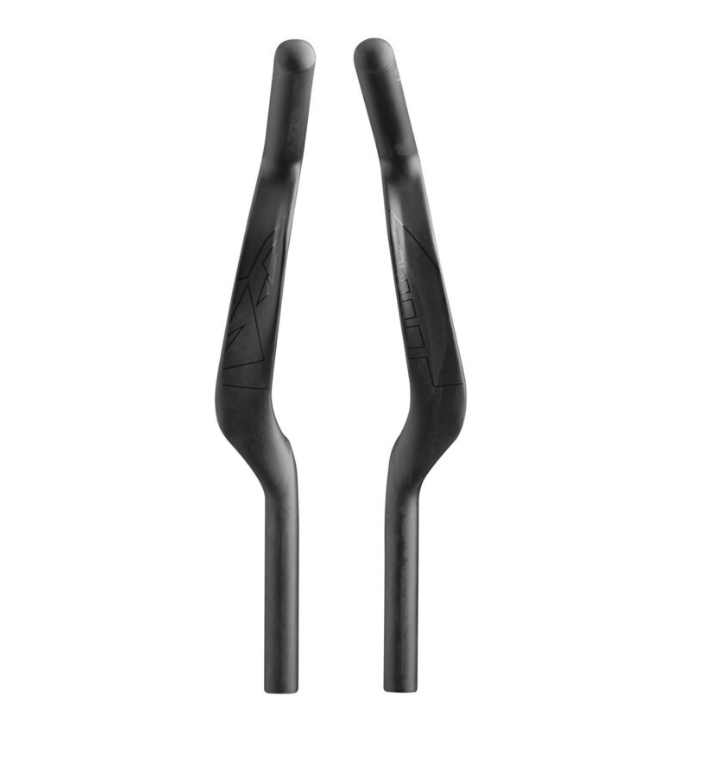

Sold as a pair (1 Right and 1 Left Extension)

Specifications

• Construction: Carbon
• Outer Diameter: 22.2mm
• Extension Length: 340mm or 400mm
• Extension Angle: 52 degrees
• Extension Offset: 16mm total
• Extension Rise: 127mm / 137mm
• Min. Length: 290mm (from front of clamp)
• Weight: 230g/pair / 240g/pair
